Flowmeter

A digital flowmeter is required to measure gas flows associated with thermal desorption equipment and sampling.

Markes’ recommended flowmeter is tested over the range of 0.0 to 500.0 ml/min with an uncertainty of +/- 0.4 ml/min or 2.5%, whichever is greater. Calibration Reference Temperature and Pressure: 0°C and 760 mm Hg. Compatible with eight gases including helium, hydrogen and nitrogen, in the range 0.1–500 mL/min.

  • Enables repeatable analysis and compliance with standard methods
  • Rechargeable battery
  • Calibration traceable to UKAS standards

Product List

Showing 1/1 results

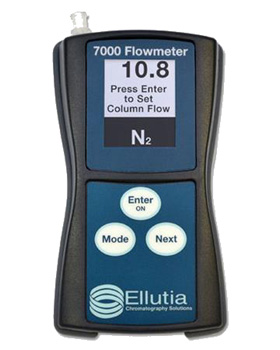

Flowmeter C FLMTR 01

Digital flowmeter

With rechargeable battery

Product Code

C-FLMTR

Overview

The flowmeter is used to set flows on instruments with needle-valve flow control (for example, the manual UNITY-xr, manual TD100-xr, Kori-xr and instruments fitted with internal standard capability). It is also used during setup/maintenance of all Markes’ TD instruments on GC systems without total flow reporting and when setting flow rates whilst using a Calibration Solution Loading Rig, TC-20, Micro-Chamber/Thermal Extractor or sampling pump such as the ACTI-VOC.

Traditional bubble flowmeters rely on the reaction time of the operator, which is a potential source of error. The digital flowmeter eliminates this source of error, and makes gas flow measurement easier and more accurate.

The flowmeter also enables end-users to set the temperature and pressure of their working environment to allow automatic compensation for changes from its calibration conditions. This helps ensure that a high level of accuracy is maintained.

The flowmeter provides:

  • Split flow rate: The column flow is measured, followed by the flow through the split line. Column flow, split line flow and split ratio are displayed simultaneously.
  • Linear velocity: The operator selects a column diameter from the list provided, and then the linear velocity is calculated and displayed. The result is displayed alongside the flow rate so that the operator can view them both and independently set either parameter.

 Specification

  • Range: 0.1–500 mL/min
  • Resolution: 0.1 mL/min
  • Accuracy: 0.4 mL/min or 2.5%
  • Gases: Air, argon, argon/5% methane, carbon dioxide, helium, hydrogen, nitrogen, oxygen

Each flowmeter is supplied with:

  • Micro-USB cable
  • Tubing (50 cm)
  • Calibration certificate
  • Instruction manual

ISO/IEC 17025:2005 traceable calibration:

The flowmeter is calibrated for all gases using a calibration traceable to ISO/IEC 17025:2005. An economical recalibration service is available that maintains the unit’s performance; this service is also traceable to ISO/IEC 17025:2005.

Part number:
C-FLMTR
