Syringes 01
Syringes 01

Syringes - HS

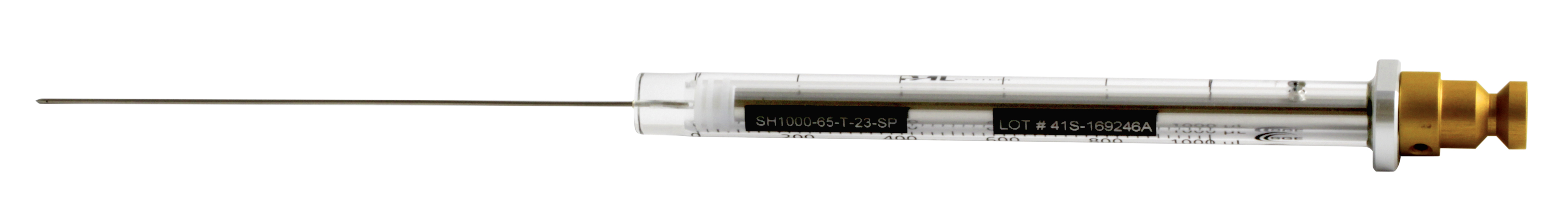

Smart headspace syringe

S2-H1000-65-T-23-SP

A selection of headspace (HS) syringes are available from Markes for accurate transfer of small volumes of gas onto the head of the GC column, either manually or via automated platforms such as Centri. The syringes are compatible with CTC PAL3 tools, enabling use on automated systems, and can also be used to load gas standards onto tubes using the Calibration Solution Loading Rig (CSLR).

  • Energised plunger tip ensures that a gas-tight seal is consistently maintained
  • Diamond headspace syringes reduce equilibration times compared to other headspace syringes
  • Designed to withstand fast septum injections

Product List

Showing 6/6 results

Smart headspace syringe Image

Smart headspace syringe

1 mL maximum capacity

Product Code

S2-H1000-65-T-23-SP

Smart headspace syringe Image

Smart headspace syringe

2.5 mL maximum capacity

Product Code

S2-H2500-65-T-23-SP

Smart headspace syringe Image

Smart headspace syringe

5 mL maximum capacity

Product Code

S2-H5000-65-T-23-SP

Headspace syringe Image

Headspace syringe

1 mL maximum capacity

Product Code

C-HSSYR-1000

Headspace syringe Image

Headspace syringe

2.5 mL maximum capacity

Product Code

C-HSSYR-2500

Headspace syringe Image

Headspace syringe

5 mL maximum capacity

Product Code

C-HSSYR-5000

Overview

Syringes can be used for both manual and automated headspace sampling, as well as introduction of gas standards to thermal desorption tubes for calibration.

Consistent transfer volumes and loading methods ensure repeatability and allow comparison of data. The gas-tight seal prevents sample contamination or loss of sample during transfer, and the zero-dead-volume design ensures that the sample is completely swept from the barrel, minimising syringe carryover and reducing the need for flushing and washing of syringes. Syringes can maintain performance up to 150°C and through temperature cycling.

Part numbers:
C-HSSYR-1000 - C-HSSYR-2500 - C-HSSYR-5000 - S2-H1000-65-T-23-SP - S2-H2500-65-T-23-SP - S2-H5000-65-T-23-SP

Resources

Sample extraction supplies catalogue
