Syringes - Liquid

Smart liquid syringe

S2-C5000-57-T-22-FL

A selection of liquid syringes are available from Markes for accurate transfer of small volumes of liquid to a specific injection point, either directly onto a tube or using a Calibration Solution Loading rig (CSLR) for calibration, or into the permeation device of a Micro-Chamber/Thermal Extractor (µ-CTE).

  • Replaceable needle
  • Repeating adaptor prevents plunger blow-out and bending
  • Repeating adaptor allows the needle to sit in a raised position, preventing rolling

Product List

Showing 10/10 results

Smart liquid syringe Image

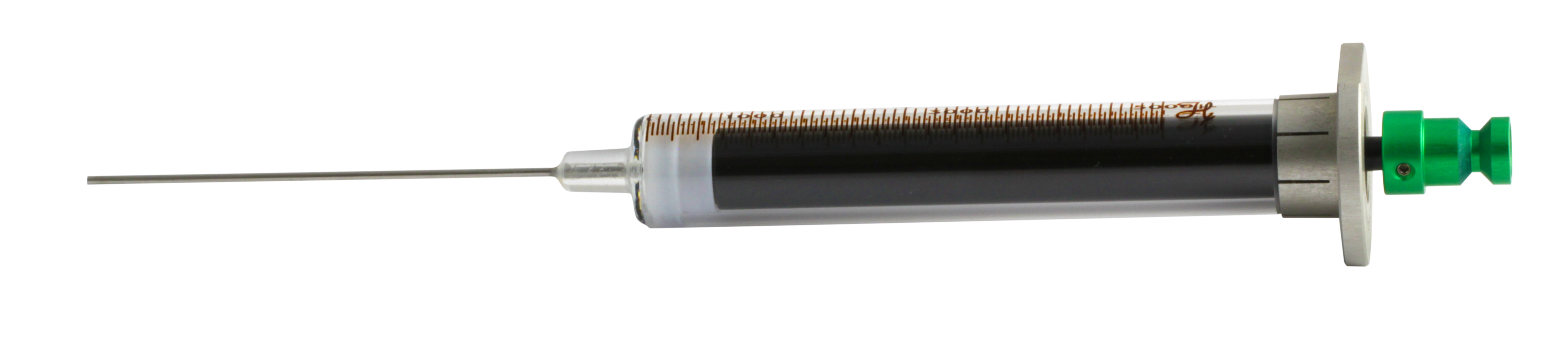

Smart liquid syringe

With fixed needle- 5000 microliter- for tool LS1857: Needle length 57mm- PTFE plunger- gauge 22- scale length 60mm- point style flat

Product Code

S2-C5000-57-T-22-FL

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 1000 microliter- for tool LS857: Needle length 57mm- PTFE plunger- gauge 23- scale length 60mm- point style conical

Product Code

S2-F1000-57-T-23-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 100 microliter- for tool LS757: Needle length 57mm- PTFE plunger- gauge 23S- scale length 60mm- point style conical

Product Code

S2-F100-57-T-23S-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 100 microliter- for tool LS757: Needle length 57mm- PTFE plunger- gauge 26S- scale length 60mm- point style conical

Product Code

S2-F100-57-T-26S-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 100 microliter- for tool LS785: Needle length 85mm- PTFE plunger- gauge 26S- scale length 60mm- point style conical

Product Code

S2-F100-85-T-26S-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 10 microliter- for tool LS757: Needle length 57mm- metal plunger- gauge 23S- scale length 54mm- point style conical

Product Code

S2-F10-57-M-23S-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 10 microliter- for tool LS757: Needle length 57mm- metal plunger- gauge 26S- scale length 54mm- point style conical

Product Code

S2-F10-57-M-26S-CO

Smart liquid syringe Image

Smart liquid syringe

With fixed needle- 10 microliter- for tool LS785: Needle length 85mm- metal plunger- gauge 26S- scale length 54mm- point style conical

Product Code

S2-F10-85-M-26S-CO

Liquid syringe Image

Liquid syringe

1 microliter- plunger-in-needle with repeating adaptor- 50 mm needle length- 0.63 mm needle o.d.

Product Code

C-SYL00-1UL

Liquid syringe Image

Liquid syringe

5 microliter- plunger-in-barrel fixed needle- 50 mm needle length- 0.47 mm needle o.d.

Product Code

C-SYL00-5UL

Overview

Liquid syringes provided by Markes ensure consistent transfer volumes and sample loading, helping to improve repeatability across measurements. The removable needle design minimises the ‘dead volume’ compared to cemented needles.

Syringes are hand-held manual tools that are simple to use. The repeat adaptor has finger-grips that make it easy to hold.

Part numbers:
C-SYL00-1UL - C-SYL00-5UL - S2-C5000-57-T-22-FL - S2-F1000-57-T-23-CO - S2-F100-57-T-23S-CO - S2-F100-57-T-26S-CO - S2-F100-85-T-26S-CO - S2-F10-57-M-23S-CO - S2-F10-57-M-26S-CO - S2-F10-85-M-26S-CO

Resources

Sample extraction supplies catalogue
